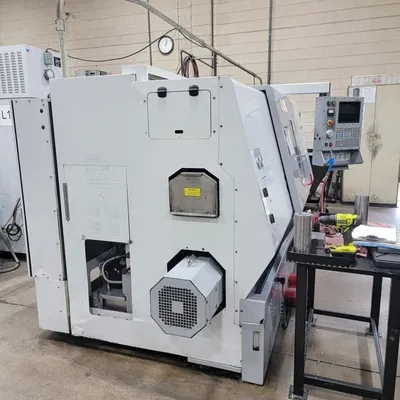

HAAS SL30T CNC Lathe (2002)

Have one to sell?
773.866.9600
sales@assetexchangeinc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC
Manufacturer:
HAAS
Model:
SL-30T
Year:
2002
Stock #:
92887
Status:
For Sale
size10" Chuck10" Chuck
Swing30"762 mm
Machining Length32"812.8 mm
# Axis22
Chuck Size10"254 mm
Bar Capacity3"76.2 mm
Power30 hp22.4 kW
Max RPM3,400 RPM3,400 RPM
Turning Dia17"431.8 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo

Haas SL30T CNC Lathe (2002)
Chuck: 10"
thru hole: 3"
Chuck Size 10″ Hydraulic Chuck 3-Jaw
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Speed: 3,400 RPM
Spindle Motor: 30HP
Turret Type: 12 Positions Bolt on Type
Tailstock Travel: 33.5"
Rapid Traverse Rates: 710-IPM
Electrical: 208/230V, 3ph
Machine Dimensions: 161" x 77" x 74"
Approximate machine Weight: 13,900Lbs
