Chevalier FVM 3016 Vertical Bridge Mill (2013)
Have one to sell?
ConditionUsed
1 available
Bridge Mill, 6000 RPM, 50 Taper, 20 ATC
CHEVALIER FVM 3016 CNC BRIDGE MILL
New in 2011
Installed in 2013
Max work piece weight: 14330 lbs
Machining Capacity: 122" x 63" x 33.6"
Distance between columns: 66.9"
Table Size: 122" x 57"
X -axis travel: 122"
Y-axis travel: 61"
Z-axis travel: 30.7"
SPINDLE
Spindle speed: 6000 RPM
taper: BT50
Spindle nose to table surface: 7.87" - 38.5"
FEED RATE
X-axis rapid traverse: 15m/min
Y-axis rapid traverse: 15m/min
Z-axis rapid traverse: 15m/min
Cutting feed (x/y/z/): 1-7m/min
AUTOMATIC TOOL CHANGER
Tool storage capacity: 20 ATC
Max tool weight: 33 lbs
Max tool length: 11.8"
Tool change time: 5 sec
MOTORS
Spindle motor: 25/30 HP
Drive motors (x/y/z): 10/10/5 HP
Oil lubrication motor: 1/3 HP
Hydraulic motor: 7.5 HP
Coolant motor: 1.5 HP
Chip conveyor motor: 1/4 HP
Fanuc Oi-MD control
Spindle air curtain system
Air blast chip blower
Auto lubrication system

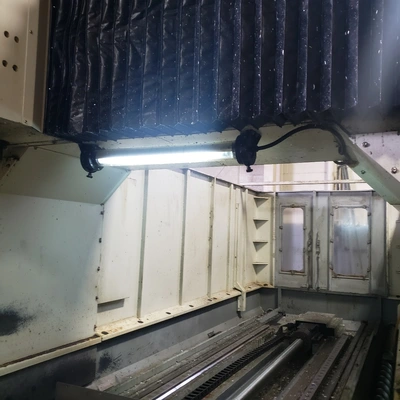

Work light
Pilot light
spindle/gear head oil chiller
Hydraulic system

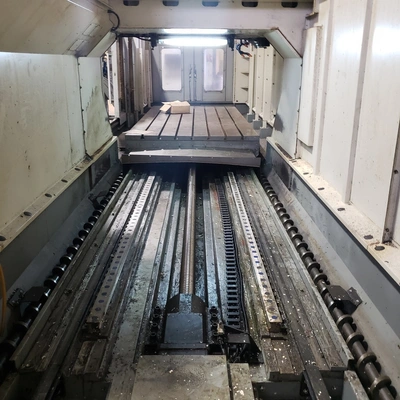

Screw type chip conveyor x-axis
Chain type chip conveyor y-axis
Air conditioned electric cabinet
Foot pedal for tool clamping and unclamping
Rigid tapping
RS232 interface
under 2500 cutting hours
